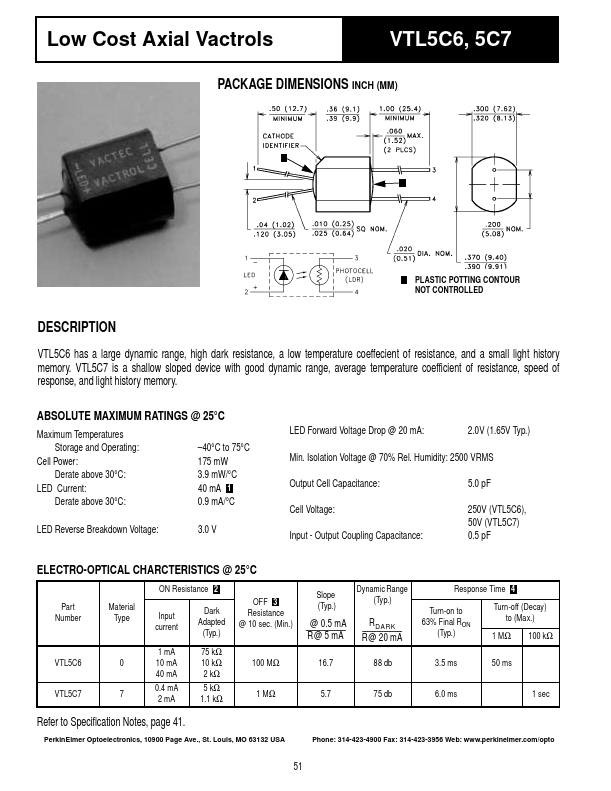

VTL5C6
DESCRIPTION
VTL5C6 has a large dynamic range, high dark resistance, a low temperature coeffecient of resistance, and a small light history memory. VTL5C7 is a shallow sloped device with good dynamic range, average temperature coefficient of resistance, speed of response, and light history memory.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Maximum Temperatures Storage and Operating:
Cell Power: Derate above 30°C:
LED Current: Derate above 30°C:
- 40°C to 75°C 175 m W 3.9 m W/°C 40 m A 1 0.9 m A/°C
LED Reverse Breakdown Voltage:
3.0 V
LED Forward Voltage Drop @ 20 m A:
2.0V (1.65V Typ.)
Min. Isolation Voltage @ 70% Rel. Humidity: 2500 VRMS
Output Cell Capacitance:
5.0 p F
Cell Voltage: Input
- Output Coupling Capacitance:
250V (VTL5C6), 50V (VTL5C7) 0.5 p F
ELECTRO-OPTICAL CHARCTERISTICS @ 25°C
Part Number
Material Type
ON Resistance 2
Input current
Dark Adapted
(Typ.)
OFF 3 Resistance @ 10 sec. (Min.)
VTL5C6 VTL5C7
1 m A
75 kΩ
10 m A
10 kΩ
100 MΩ
40 m A
2 kΩ
0.4 m A 2 m A
5...
