C30921S, C30902E - (C309xxx) Silicon Avalanche Photodiodes

PerkinElmer Optoelectronics

📥 Download Datasheet

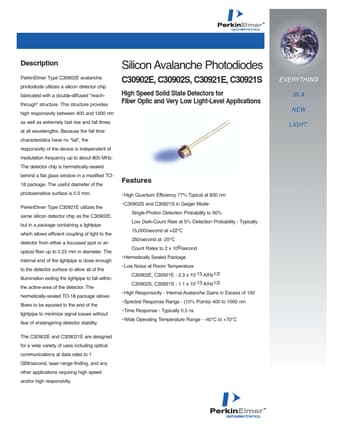

C30921S Datasheet Preview — This datasheet PDF includes multiple part numbers: C30921S, C30902E. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	C30921S, C30902E
Manufacturer	PerkinElmer Optoelectronics
File Size	232.32 KB
Description	(C309xxx) Silicon Avalanche Photodiodes
Datasheet	C30902E_PerkinElmerOptoelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: C30921S, C30902E. Please refer to the document for exact specifications by model.

C30921S Product details

Description

PerkinElmer Type C30902E avalanche photodiode utilizes a silicon detector chip fabricated with a double-diffused "reachthrough" structure.

Features

High Quantum Efficiency 77% Typical at 830 nm.
C30902S and C30921S in Geiger Mode: Single-Photon Detection Probability to 50% Low Dark-Count Rate at 5% Detection Probability - Typically 15,000/second at +22°C 350/second at -25°C Count Rates to 2 x 106/second.
Hermetically Sealed Package.
Low Noise at Room Temperature C30902E, C30921E - 2.3 x 10-13 A/Hz1/2 C30902S, C30921S - 1.1 x 10-13 A/Hz1/2.
High Responsivity - Internal Avalanche Gains in Excess o.
