PI74SSTVF16859 - 13-Bit to 26-Bit Registered Buffer

Name: PI74SSTVF16859
SKU: PI74SSTVF16859-586830

Pericom Semiconductor

📥 Download Datasheet

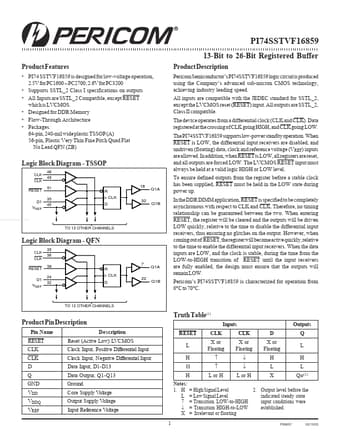

PI74SSTVF16859 Datasheet Preview — Preview of PI74SSTVF16859 PDF

Datasheet Details

Part number	PI74SSTVF16859
Manufacturer	Pericom Semiconductor
File Size	218.26 KB
Description	13-Bit to 26-Bit Registered Buffer
Datasheet	PI74SSTVF16859_PericomSemiconductor.pdf

PI74SSTVF16859 Product details

Description

Pericom Semiconductor’s PI74SSTVF16859 logic circuit is produced using the Company’s advanced sub-micron CMOS technology, achieving industry leading speed.

Features

PI74 SSTVF16859 is designed for low-voltage operation, 2.5V for PC1600 ~ PC2700; 2.6V for PC3200.
Supports SSTL_2 Class I specifications on outputs.
All Inputs are SSTL_2 Compatible, except RESET which is LVCMOS.
Designed for DDR Memory.
Flow-Through Architecture.
Packages: 64-pin, 240-mil wide plastic TSSOP (A) 56-pin, Plastic Very Thin Fine Pitch Quad Flat No Lead QFN (ZB) Product.
