PI6C3421A - Spread Spectrum Clock Synthesizer

Pericom Semiconductor Corporation

The PI6C3421A by Pericom Semiconductor Corporation is a Spread Spectrum Clock Synthesizer. Below is the official datasheet preview.

Datasheet Details

Part number	PI6C3421A
Manufacturer	Pericom Semiconductor Corporation
File Size	399.80 KB
Description	Spread Spectrum Clock Synthesizer
Datasheet	PI6C3421A_PericomSemiconductorCorporation.pdf

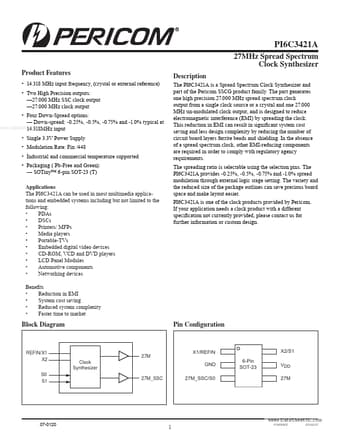

Additional preview pages of the PI6C3421A datasheet.

The PI6C3421A is a Spread Spectrum Clock Synthesizer and part of the Pericom SSCG product family.

14.318 MHz input frequency, (crystal or external reference).
Two High Precision outputs:.
27.000 MHz SSC clock output.
27.000 MHz clock output.
Four Down-Spread options:.
Down-spread: -0.25%, -0.5%, -0.75% and -1.0% typical at www. DataSheet4U. com 14.318MHz input.
Single 3.3V Power Supply.
Modulation Rate: Fin /448.
Industrial and commercial temperature supported.
Packaging ( Pb-Free and Green):.
SOT.
