PI5V332Q - Low On-Resistance Wideband/Video Quad with Individual Control

Pericom Semiconductor Corporation

The PI5V332Q by Pericom Semiconductor Corporation is a Low On-Resistance Wideband/Video Quad with Individual Control. Below is the official datasheet preview.

📥 Download Datasheet

PI5V332Q Low On-Resistance Wideband/Video Quad with Individual Control by Pericom Semiconductor Corporation - Datasheet Preview — Official preview page of the **PI5V332Q** Low On-Resistance Wideband/Video Quad with Individual Control datasheet (Pericom Semiconductor Corporation).

Datasheet Details

Part number	PI5V332Q
Manufacturer	Pericom Semiconductor Corporation
File Size	405.72 KB
Description	Low On-Resistance Wideband/Video Quad with Individual Control
Datasheet	PI5V332Q_PericomSemiconductorCorporation.pdf

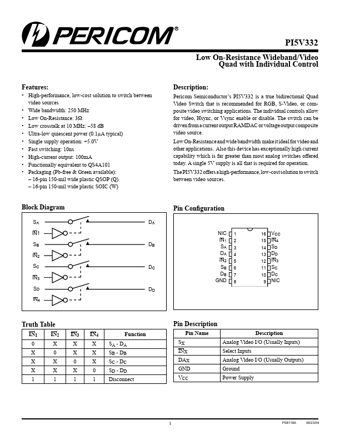

Additional preview pages of the PI5V332Q datasheet.

PI5V332Q Product details

Description

Pericom Semiconductor’s PI5V332 is a true bidirectional Quad Video Switch that is recommended for RGB, S-Video, or composite video switching applications.

Features

High-performance, low-cost solution to switch between video sources.
Wide bandwidth: 250 MHz.
Low On-Resistance: 3Ω.
Low crosstalk at 10 MHz:.
58 dB.
Ultra-low quiescent power (0.1µA typical).
Single supply operation: +5.0V.
Fast switching: 10ns.
High-current output: 100mA.
Functionally equivalent to QS4A101.
Packaging (Pb-free & Green available):.
16-pin 150-mil wide plastic QSOP (Q).
