PE4248 - SPST CATV MOSFET Switch

Peregrine Semiconductor

Datasheet Details

Part number	PE4248
Manufacturer	Peregrine Semiconductor
File Size	369.12 KB
Description	SPST CATV MOSFET Switch

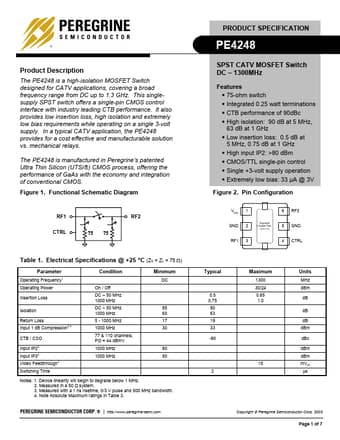

Datasheet	PE4248-PeregrineSemiconductor.pdf

The PE4248 is a high-isolation MOSFET Switch designed for CATV applications, covering a broad frequency range from DC up to 1.3 GHz.

75-ohm switch.
Integrated 0.25 watt terminations.
CTB performance of 90dBc.
High isolation: 90 dB at 5 MHz, 63 dB at 1 GHz.
Low insertion loss: 0.5 dB at 5 MHz, 0.75 dB at 1 GHz.
High input IP2: >80 dBm.
CMOS/TTL single-pin control.
Single +3-volt supply operation.
Extremely low bias: 33 µA @ 3V Figure 2. Pin Configuration VDD 1 GND 2 RF1 3 Exposed Solder Pad (bottom side) 6 RF2 5 GND 4 CTRL Typical 0.5 0.75 90.
