PE42441 - SP4T RF Switch

Name: PE42441
SKU: PE42441-1279603

Peregrine Semiconductor

📥 Download Datasheet

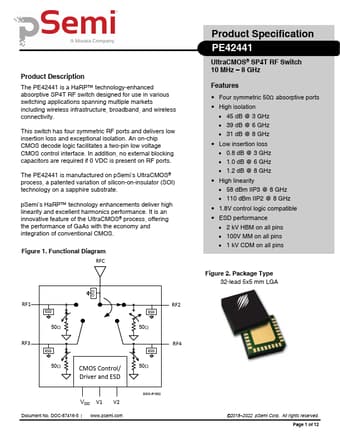

PE42441 Datasheet Preview — Preview of PE42441 PDF

Datasheet Details

Part number	PE42441
Manufacturer	Peregrine Semiconductor
File Size	733.74 KB
Description	SP4T RF Switch
Datasheet	PE42441-PeregrineSemiconductor.pdf

PE42441 Product details

Description

The PE42441 is a HaRP™ technology-enhanced absorptive SP4T RF switch designed for use in various switching applications spanning multiple markets including wireless infrastructure, broadband, and wireless connectivity.

Features

 Four symmetric 50Ω absorptive ports.
 High isolation.
 45 dB @ 3 GHz.
 39 dB @ 6 GHz.
 31 dB @ 8 GHz.
 Low insertion loss.
 0.8 dB @ 3 GHz.
 1.0 dB @ 6 GHz.
 1.2 dB @ 8 GHz.
 High linearity.
 58 dBm IIP3 @ 8 GHz.
 110 dBm IIP2 @ 8 GHz.
 1.8V control logic compatible.
 ESD performance.
 2 kV HBM on all pins.
 100V MM on all pins.
