PE7396-4 - 4dB Fixed Attenuator

The PE7396-4 by Pasternack Enterprises is a 4dB Fixed Attenuator. Below is the official datasheet preview.

📥 Download Datasheet

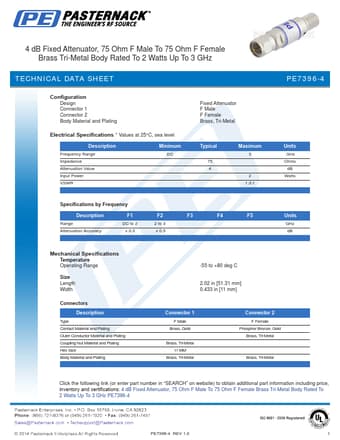

Official preview page of the PE7396-4 4dB Fixed Attenuator datasheet (Pasternack Enterprises).

Datasheet Details

Part number PE7396-4
Manufacturer Pasternack Enterprises
File Size 196.60 KB
Description 4dB Fixed Attenuator
Datasheet download datasheet PE7396-4-PasternackEnterprises.pdf
Additional preview pages of the PE7396-4 datasheet.

PE7396-4 Product details

Description

Minimum Typical Maximum 3 Units GHz Frequency Range DC Impedance 75 Ohms Attenuation Value 4 dB Input Power .2 Watts VSWR 1.3:1 Specifications by Frequency Range Attenuation Accuracy Description F1 DC to 2 ± 0.3 F2 F3 F4 F5 Units GHz dB 2 to 3 ± 0.5 .Mechanical Specifications Temperature Operating Range Size Length Width .-55 to +80 deg C 2.02 in [51.31 mm] 0.433 in [11 mm] Connectors Type Contact Material and Platin
