L314SRD-A - 3.0mm DIA LED LAMP

📥 Download Datasheet

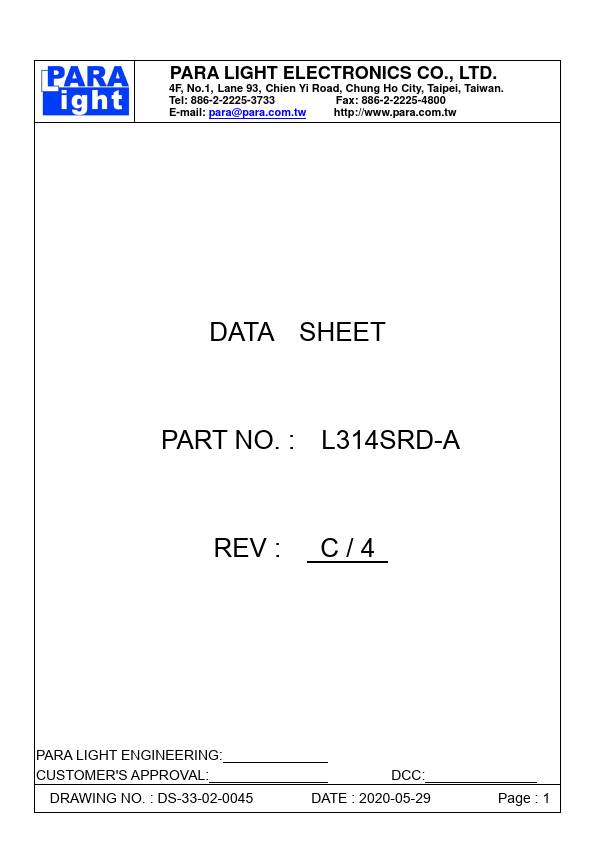

L314SRD-A Datasheet Preview — Preview of L314SRD-A PDF

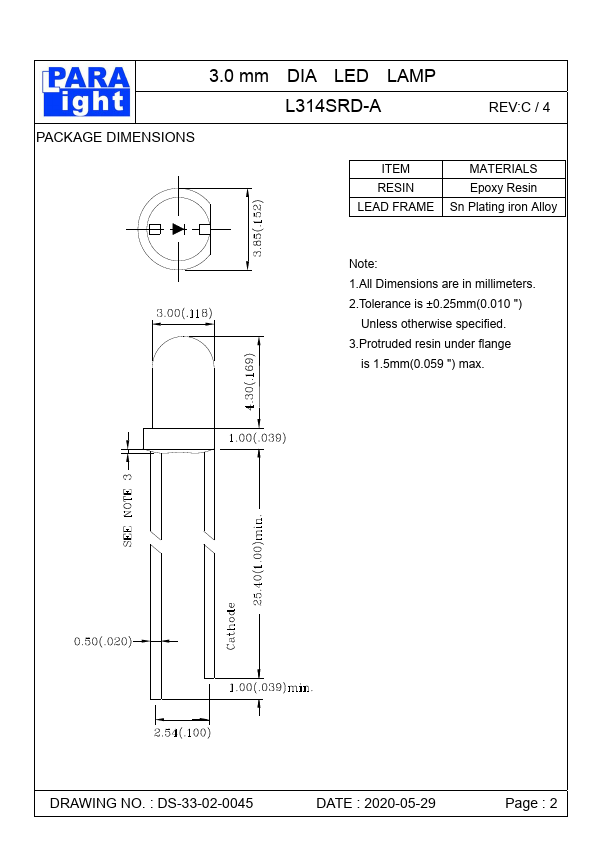

datasheet Preview Page 2

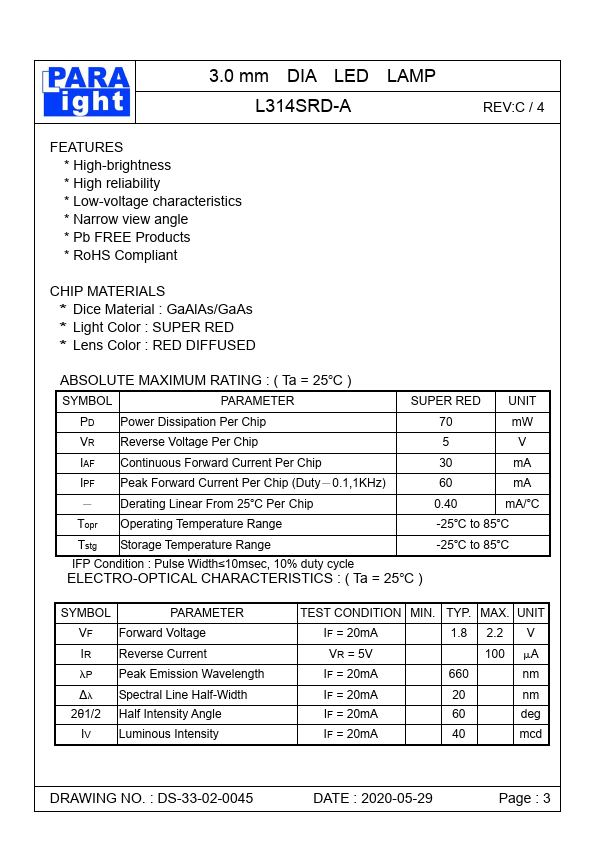

datasheet Preview Page 3

Datasheet Details

Part number	L314SRD-A
Manufacturer	Para Light Electronics
File Size	378.37 KB
Description	3.0mm DIA LED LAMP
Datasheet	L314SRD-A-ParaLightElectronics.pdf

L314SRD-A Product details

Features

High-brightness.
High reliability.
Low-voltage characteristics.
Narrow view angle.
Pb FREE Products.
RoHS Compliant CHIP.
