TXS2-24V, TXS2-LT-3V - TX-S RELAYS

Panasonic

Datasheet Details

Part number	TXS2-24V, TXS2-LT-3V
Manufacturer	Panasonic
File Size	3.65 MB
Description	TX-S RELAYS
Datasheet	TXS2-LT-3V_Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: TXS2-24V, TXS2-LT-3V. Please refer to the document for exact specifications by model.

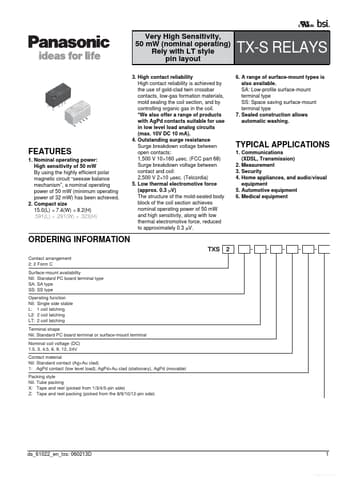

1. Nominal operating power: High sensitivity of 50 mW By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 50 mW (minimum operating power of 32 mW) has been achieved. 2. Compact size 15.0(L)  7.4(W)  8.2(H) .591(L)  .291(W)  .323(H).
