TC-21FG20P Color TV Service Manual

PICTURE TUBE SPEAKER REMOTE CONTROL ANTENNA PLUG MODEL NAME PLATE PANASONIC BADGE POWER BUTTON COIL SPRING SPRING (POWER BUTTON) SPEAKER BRACKET AC CORD BRACKET DOOR BACK COVER DEGAUSSING COIL DEFLECTION YOKE RUBBER WEDGE RUBBER DAMPER RUBBER WASHER A BOARD L BOARD CONVERGENCE YOKE LAMI BAG SET COVE.

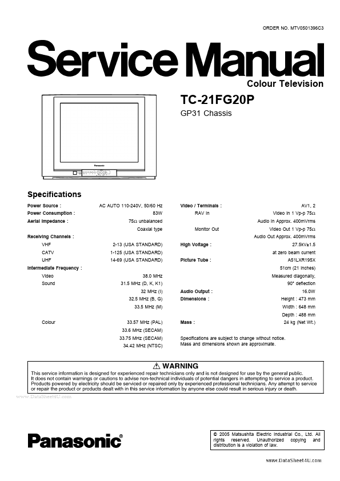

ORDER NO. MTV0501396C3 Colour Television TC-21FG20P GP31 Chassis Specifications Power Source : Power Consumption : Aerial Impedance : Receiving Channels : VHF CATV UHF Intermediate Frequency : Video Sound 38.0 MHz 31.5 MHz (D, K, K1) 32 MHz (I) 32.5 MHz (B, G) 33.5 MHz (M) Colour 33.57 MHz (PAL) 33.6 MHz (SECAM) 33.75 MHz (SECAM) 34.42 MHz (NTSC) Specifications are subject to change without notice. Mass and dimensions shown are approximate. Mass : Audio Output : Dimensions : 2-13 (USA STANDAR.
