ST2-DC6V-F, ST2-DC3V-F - ST RELAYS

Name: ST2-DC6V-F
SKU: ST2-DC6V-F-1247564

Panasonic

The ST2-DC6V-F by Panasonic is a ST RELAYS. Below is the official datasheet preview.

Datasheet Details

Part number	ST2-DC6V-F, ST2-DC3V-F
Manufacturer	Panasonic
File Size	391.84 KB
Description	ST RELAYS
Datasheet	ST2-DC3V-F-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: ST2-DC6V-F, ST2-DC3V-F. Please refer to the document for exact specifications by model.

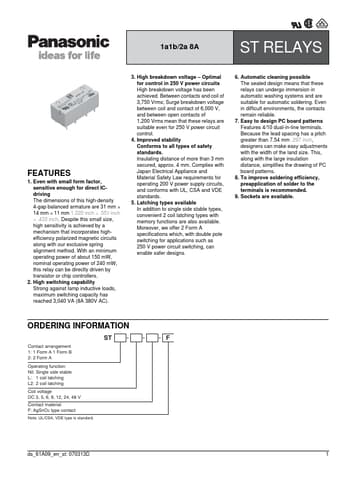

Additional preview pages of the ST2-DC6V-F datasheet.

1. Even with small form factor, sensitive enough for direct ICdriving The dimensions of this high-density 4-gap balanced armature are 31 mm  14 mm  11 mm 1.220 inch  .551 inch  .433 inch. Despite this small size, high sensitivity is achieved by a mechanism that incorporates highefficiency polarized magnetic circuits along with our exclusive spring alignment method. With an minimum operating power of about 150 mW, nominal operating power of 240 mW, this relay can be directly driven by transis.
