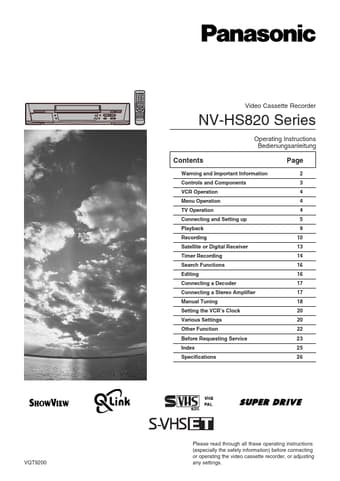

NV-HS820 - Video Cassette Recorder Operating Instructions

Product Overview

Panasonic

Part number	NV-HS820
Manufacturer	Panasonic
File Size	1.04 MB
Description	Video Cassette Recorder Operating Instructions
Datasheet	NV-HS820 Datasheet
Additional preview pages of the NV-HS820 datasheet.

Y/C signal separation, set the [Normal/S-Video Output] switch on the rear panel to [S-VIDEO OUT] so that you can play back with high picture quality and use a fully-wired 21-pin Scart cable (not supplied) to connect the VCR to the TV. 5 Preset Download (To Simultaneously Set Up this VCR with a New TV) First of all, make sure that the VCR is switched off. Switch the TV on. The TV starts to tune all available TV stations and to adjust the clock. When the TV has finished its own auto setup, the.
