MN67603NS - NTSC Color Camera Synchronizing Signal Generator LSI

Name: MN67603NS
SKU: MN67603NS-503260

Panasonic

The MN67603NS by Panasonic is a NTSC Color Camera Synchronizing Signal Generator LSI. Below is the official datasheet preview.

Datasheet Details

Part number	MN67603NS
Manufacturer	Panasonic
File Size	46.14 KB
Description	NTSC Color Camera Synchronizing Signal Generator LSI
Datasheet	MN67603NS_Panasonic.pdf

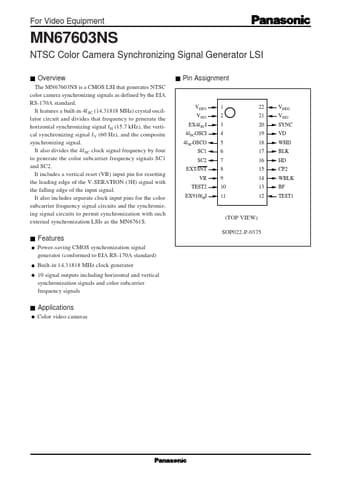

Additional preview pages of the MN67603NS datasheet.

Pin No.

a built-in 4f SC (14.31818 MHz) crystal oscillator circuit and divides that frequency to generate the horizontal synchronizing signal fH (15.7 kHz), the vertical synchronizing signal fV (60 Hz), and the composite synchronizing signal. It also divides the 4fSC clock signal frequency by four to generate the color subcarrier frequency signals SC1 and SC2. It includes a vertical reset (VR) input pin for resetting the leading edge of the V-.
