MN31121SA - CCD Image Sensor Vertical Driver IC

Name: MN31121SA
SKU: MN31121SA-500765

Panasonic

The MN31121SA by Panasonic is a CCD Image Sensor Vertical Driver IC. Below is the official datasheet preview.

Datasheet Details

Part number	MN31121SA
Manufacturer	Panasonic
File Size	173.27 KB
Description	CCD Image Sensor Vertical Driver IC
Datasheet	MN31121SA_Panasonic.pdf

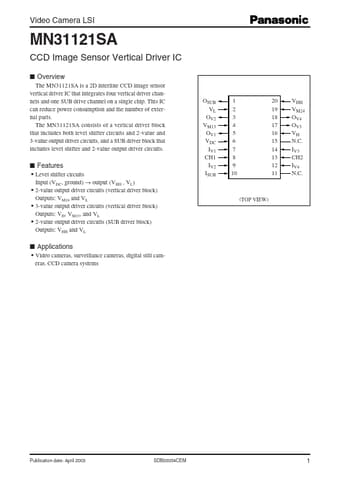

Additional preview pages of the MN31121SA datasheet.

Pin No.

s.
Level shifter circuits Input (VDC, ground) → output (VHH , VL).
2-value output driver circuits (vertical driver block) Outputs: VM24 and VL.
3-value output driver circuits (vertical driver block) Outputs: VH, VM13, and VL.
2-value output driver circuits (SUB driver block) Outputs: VHH and VL OSUB VL OV2 VM13 OV1 VDC IV1 CH1 IV2 ISUB 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 VHH VM24 OV4 OV3 VH N. C. IV3 CH2 IV4 N. C. (TOP VIEW).
Applicatio.
