MAZS180 - Silicon planar type

Product Overview

Panasonic

📥 Download Datasheet

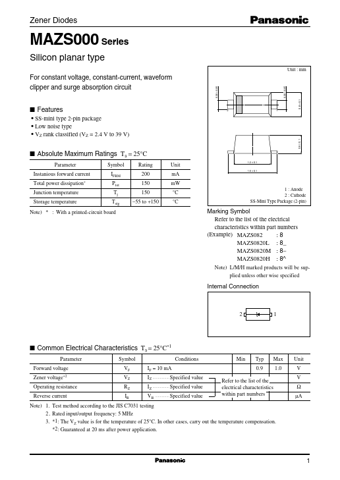

MAZS180 Silicon planar type by Panasonic - Datasheet Preview — Datasheet preview – MAZS180

Datasheet Details

Part number	MAZS180
Manufacturer	Panasonic
File Size	Direct Link
Description	Silicon planar type
Datasheet	MAZS180 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAZS180, MAZ. Please refer to the document for exact specifications by model.
Additional preview pages of the MAZS180 datasheet.

Product details

Features

SS-mini type 2-pin package.
Low noise type.
VZ rank classified (VZ = 2.4 V to 39 V) 2 1 I Absolute Maximum Ratings Ta = 25°C Parameter Instanious forward current Total power dissipation.
Junction temperature Storage temperature Symbol IFRM Ptot Tj Tstg Rating 200 150 150.
55 to +150 Unit mA mW °C °C 1 : Anode 2 : Cathode SS-Mini Type Package (2-pin) 1.2 ± 0.1 1.6 ± 0.1 Note).
: With a printed-circuit board Marking Symbol Refer to the list of the.
