MAZ7068-B - Silicon planar type

Product Overview

Panasonic

Part number	MAZ7068-B
Manufacturer	Panasonic
File Size	58.35 KB
Description	Silicon planar type
Datasheet	MAZ7068-B Datasheet
Note	This datasheet PDF includes multiple part numbers: MAZ7068-B, MAZ. Please refer to the document for exact specifications by model.
Additional preview pages of the MAZ7068-B datasheet.

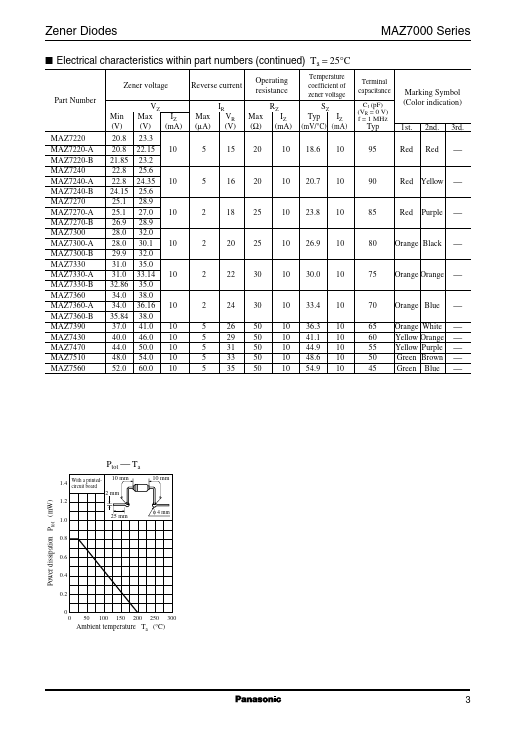

Cathode Colored band indicates Vz classification Parameter Repetitive peak forward current Total power dissipation.
1 Non-repetitive reverse surge power dissipation.
2 Junction temperature Storage temperature Symbol IFRM Ptot PZSM Tj Tstg Rating 200 800 60 200.
55 to +200 Unit mA W W °C °C 27 min. φ 3.0 max. Anode Colored bands indicates type No. Cathode on the first band (wide) 1 : Cathode 2 : Anode JEDEC : DO-41 Note).
1 : Ptot = 800 mW achieved with a printed-circu.
