MAZ1300-M - Silicon planar type Zener Diodes

Product Overview

Panasonic

📥 Download Datasheet

MAZ1300-M Silicon planar type Zener Diodes by Panasonic - Datasheet Preview — Datasheet preview – MAZ1300-M

Datasheet Details

Part number	MAZ1300-M
Manufacturer	Panasonic
File Size	77.69 KB
Description	Silicon planar type Zener Diodes
Datasheet	MAZ1300-M Datasheet
Note	This datasheet PDF includes multiple part numbers: MAZ1300-M, MAZ1000. Please refer to the document for exact specifications by model.

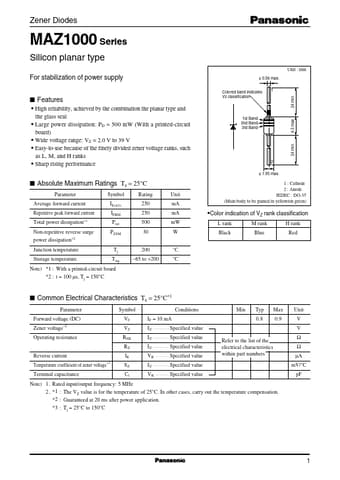

Additional preview pages of the MAZ1300-M datasheet.

Product details

Features

High reliability, achieved by the combination the planar type and the glass seal.
Large power dissipation: PD = 500 mW (With a printed-circuit board).
Wide voltage range: VZ = 2.0 V to 39 V.
Easy-to-use because of the finely divided zener voltage ranks, such as L, M, and H ranks.
Sharp rising performance I Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Average forward current Repetitive peak forward current Total power dissipation.
