MAZ1270 - Silicon planar type Zener Diodes

Product Overview

Panasonic

📥 Download Datasheet

MAZ1270 Silicon planar type Zener Diodes by Panasonic - Datasheet Preview — Datasheet preview – MAZ1270

Datasheet Details

Part number	MAZ1270
Manufacturer	Panasonic
File Size	77.69 KB
Description	Silicon planar type Zener Diodes
Datasheet	MAZ1270 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAZ1270, MAZ1000. Please refer to the document for exact specifications by model.

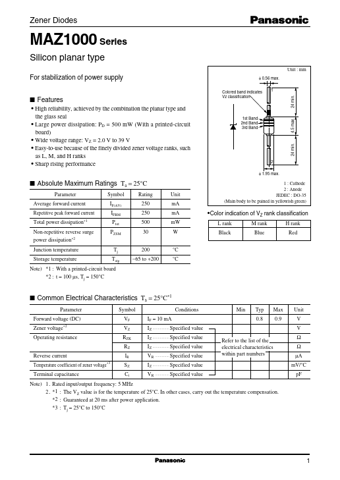

Additional preview pages of the MAZ1270 datasheet.

Product details

Features

High reliability, achieved by the combination the planar type and the glass seal.
Large power dissipation: PD = 500 mW (With a printed-circuit board).
Wide voltage range: VZ = 2.0 V to 39 V.
Easy-to-use because of the finely divided zener voltage ranks, such as L, M, and H ranks.
Sharp rising performance I Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Average forward current Repetitive peak forward current Total power dissipation.
