MA2Z720 - Schottky Barrier Diodes

Product Overview

Panasonic

Part number	MA2Z720
Manufacturer	Panasonic
File Size	42.62 KB
Description	Schottky Barrier Diodes
Datasheet	MA2Z720 Datasheet
Additional preview pages of the MA2Z720 datasheet.

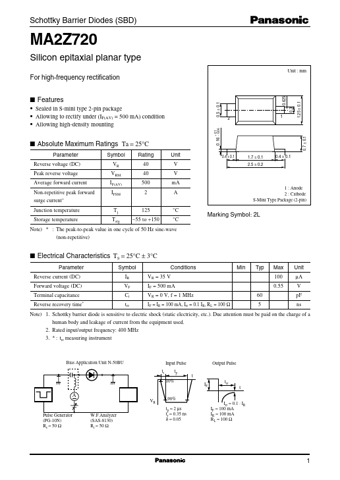

0.3 I Absolute Maximum Ratings Ta = 25°C Parameter Reverse voltage (DC) Peak reverse voltage Average forward current Non-repetitive peak forward surge current.
Junction temperature Storage temperature Symbol VR VRM IF(AV) IFSM Tj Tstg Rating 40 40 500 2 125.
55 to + 150 Unit V V mA A °C °C 0.4 ± 0.1 1.7 ± 0.1 2.5 ± 0.2 0.4 ± 0.1 1 : Anode 2 : Cathode S-Mini Type Package (2-pin) Marking Symbol: 2L Note).
: The peak-to-peak value in one cycle of 50 Hz sine-wave (non-repeti.
