MA153 - Silicon epitaxial planar type Switching Diodes

MA153 Description

Switching Diodes MA3X153, MA3X153A (MA153, MA153A) Silicon epitaxial planar type For switching circuits s .

MA153 Features

* Small terminal capacitance, Ct
* Two diodes are connected in series in the package s Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Reverse voltage MA3X153 (DC) MA3X153A VR 40 80 Peak reverse voltage MA3X153 MA3X153A VRM 40 80 Forward current (DC) Single S

📥 Download Datasheet

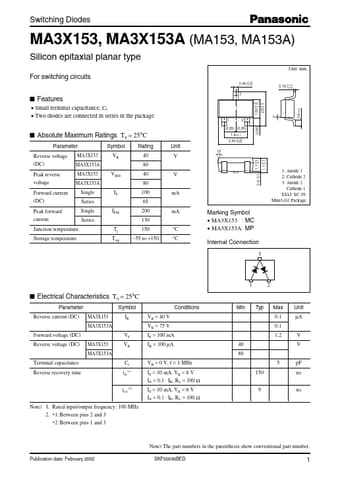

Preview of MA153 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA153
Manufacturer
Panasonic
File Size
56.93 KB
Datasheet
MA153_PanasonicSemiconductor.pdf
Description
Silicon epitaxial planar type Switching Diodes
