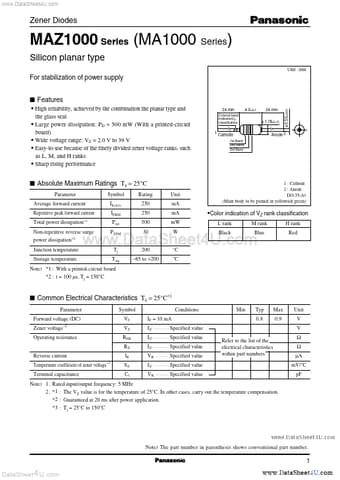

High reliability, achieved by the combination the planar type and the glass seal.
Large power dissipation: PD = 500 mW (With a printed-circuit board).
Wide voltage range: VZ = 2.0 V to 39 V.
Easy-to-use because of the finely divided zener voltage ranks, such as L, M, and H ranks.
Sharp rising performance
Colored band indicatesVz classification
φ 1.78±0.15
1
Cathode
1st Band 2nd Band 3rd Band
Anode 2
I Absolute Maximum Ratings Ta = 25°C
Parameter.
