LNJ311G83RA - Hight Bright Surface Mounting Chip LED

Panasonic

Datasheet Details

Part number	LNJ311G83RA
Manufacturer	Panasonic
File Size	329.33 KB
Description	Hight Bright Surface Mounting Chip LED
Datasheet	LNJ311G83RA Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
LNJ311G8TRA	Surface Mounting Chip LED	Panasonic Semiconductor
LNJ311G8TRU	Surface Mounting Chip LED	Panasonic Semiconductor
LNJ310M6URA	Surface Mounting Chip LED	Panasonic Semiconductor
LNJ312G8LRA	Surface Mounting Chip LED	Panasonic Semiconductor
LNJ312G8TRA	Surface Mounting Chip LED	Panasonic Semiconductor

Other Datasheets by Panasonic

Part Number	Description
LNJ311G8PRA	Surface Mounting Chip LED
LNJ310C63RA	Hight Bright Surface Mounting Chip LED
LNJ310C6PRA	Surface Mounting Chip LED
LNJ312G83RA	Hight Bright Surface Mounting Chip LED
LNJ312W83RA1	Hight Bright Surface Mounting Chip LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

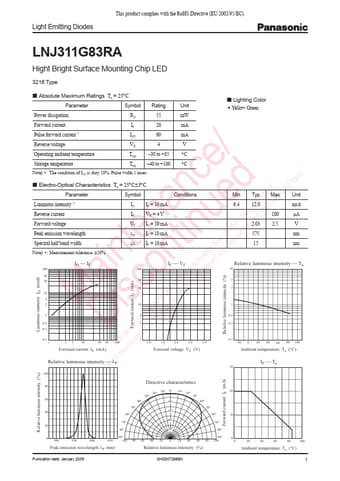

Light Emitting Diodes This product complies with the RoHS Directive (EU 2002/95/EC). LNJ311G83RA Hight Bright Surface Mounting Chip LED 3216 Type Forward current IF (mA) (planed maintMeaniantneRcenelaaFttoniyrvcpewee/al,ruDdimmsciaunciroorntuenstenitinnnItauFenenc(sdietimytnAy)c(lpu%e),deplsafnolleodwdiinsgc foontiurnuPreoddtyucptelidf,edciysccloentsitnaugee.dDisMcaionnttiennuaendtype)ce/  Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Power dissipation PD 55 Forward current IF 20 Pulse forward current * IFP 60 Reverse voltage VR 4 Operating ambient temperature Topr –30 to +85 Storage temperature Tstg –40 to +100 Note) *: The condition of IFP is duty 10%, Pulse width 1 msec.
