JQ1P-5V-F - 1a/1c 5A/10A small power relays

Download the JQ1P-5V-F datasheet PDF. This datasheet also covers the JQ1a-5V-F variant, as both devices belong to the same 1a/1c 5a/10a small power relays family and are provided as variant models within a single manufacturer datasheet.

Features

  • High electrical noise immunity.
  • High switching capacity in a compact package.
  • High sensitivity: 200 mW (1a), 400 mW (1c).
  • High surge voltage: 8,000 V between contacts and coil.
  • UL, CSA, VDE, SEMKO approved and TÜV available.
  • Class B coil insulation type also available.
  • High insulation resistance: Creepage distance and clearance between contact and coil: Min. 4 mm .157 inch.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (JQ1a-5V-F-Panasonic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number JQ1P-5V-F
Manufacturer Panasonic
File Size 520.38 KB
Description 1a/1c 5A/10A small power relays
Datasheet download datasheet JQ1P-5V-F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JQ1P-5V HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY Nais
JQ1P-12V HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY Nais
JQ1P-18V HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY Nais
JQ1P-24V HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY Nais
JQ1P-48V HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY Nais

Other Datasheets by Panasonic

Part Number Description
JQ1P-12V-F 1a/1c 5A/10A small power relays
JQ1P-18V-F 1a/1c 5A/10A small power relays
JQ1P-24V-F 1a/1c 5A/10A small power relays
JQ1P-48V-F 1a/1c 5A/10A small power relays
JQ1P-6V-F 1a/1c 5A/10A small power relays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

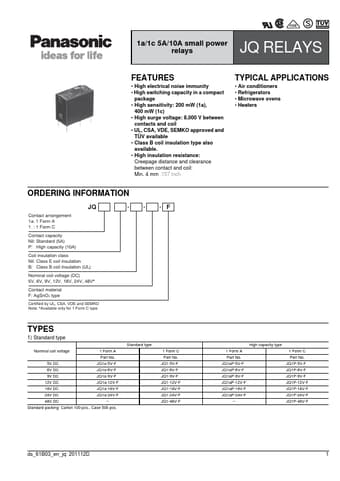

JQVDE 1a/1c 5A/10A small power JQ RELAYSrelays FEATURES • High electrical noise immunity • High switching capacity in a compact package • High sensitivity: 200 mW (1a), 400 mW (1c) • High surge voltage: 8,000 V between contacts and coil • UL, CSA, VDE, SEMKO approved and TÜV available • Class B coil insulation type also available. • High insulation resistance: Creepage distance and clearance between contact and coil: Min. 4 mm .
