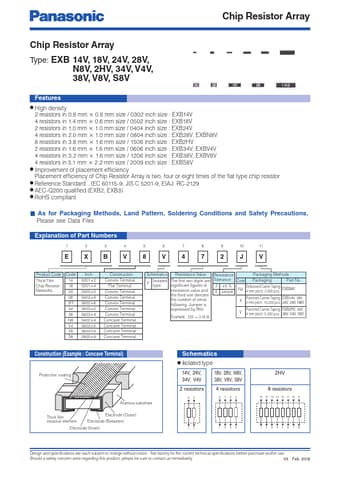

EXB-28V, EXB14V - Chip Resistor Array

Panasonic

Datasheet Details

Part number	EXB-28V, EXB14V
Manufacturer	Panasonic
File Size	123.56 KB
Description	Chip Resistor Array
Datasheet	EXB14V_Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: EXB-28V, EXB14V. Please refer to the document for exact specifications by model.

s.
High density 2 resistors in 0.8 mm ҂ 0.6 mm size 4 resistors in 1.4 mm ҂ 0.6 mm size 2 resistors in 1.0 mm ҂ 1.0 mm size 4 resistors in 2.0 mm ҂ 1.0 mm size 8 resistors in 3.8 mm ҂ 1.6 mm size 2 resistors in 1.6 mm ҂ 1.6 mm size 4 resistors in 3.2 mm ҂ 1.6 mm size 4 resistors in 5.1 mm ҂ 2.2 mm size (EXB14V) (EXB18V) (EXB24V) (EXB28V, N8V) (EXB2HV) (EXB34V, V4V) (EXB38V, V8V) (EXBS8V).
Improvement of placement efﬁciency Placement efﬁciency of Chip Resistor Array is two, four or eig.
