ETQP2H0R3BFA - Power Choke Coil

Download the ETQP2H0R3BFA datasheet PDF. This datasheet also covers the ETQP2H0R7BFA variant, as both devices belong to the same power choke coil family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • l High power, high inductance (No saturation performance realized by metal dust core) (17 A to 50 A/2.12 µH to 0.24 µH) l Low loss realized with low DCR (using flat wire) l Low buzz noise by gap-less structure l Surface mount type (Low profile: height 4.9 mm´13.0 mm´12.9 mm) n Recommended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ETQP2H0R7BFA_Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ETQP6F1R3LFA Power Choke Coil Panasonic Semiconductor
ETQ570G0DH6 LCD EMERGING DISPLAY
ETQ570G0DM6 LCD EMERGING DISPLAY
ETQ570G2DH6 LCD EMERGING DISPLAY
ETQ570G2DM6 LCD EMERGING DISPLAY

Other Datasheets by Panasonic

Part Number Description
ETQP2H0R7BFA Power Choke Coil
ETQP2H1R2BFA Power Choke Coil
ETQP2H1R8BFA Power Choke Coil
ETQP2H2R6BFA Power Choke Coil
ETQP3M100KVP Power Inductors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

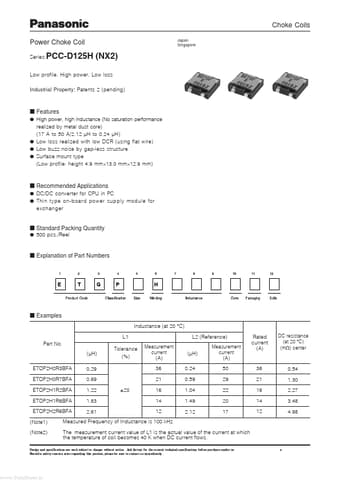

Choke Coils Power Choke Coil Series: Japan Singapore PCC-D125H (NX2) Low profile, High power, Low loss Industrial Property: Patents 2 (pending) n Features l High power, high inductance (No saturation performance realized by metal dust core) (17 A to 50 A/2.12 µH to 0.24 µH) l Low loss realized with low DCR (using flat wire) l Low buzz noise by gap-less structure l Surface mount type (Low profile: height 4.9 mm´13.0 mm´12.9 mm) n Recommended Applications l DC/DC converter for CPU in PC l Thin type on-board power supply module for exchanger n Standard Packing Quantity l 500 pcs./Reel n Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 - 6 Product Code 3 2 Classification Size 0 Winding Inductance Core Packaging Suffix n Examples Inductance (at 20 ¡C) L1 Part No.
