Datasheet Details
Part number:
ERJS03, ERJU01
Manufacturer:
Panasonic
File Size:
120.83 KB
Description:
Anti-sulfurated thick film chip resistors.
Note:
This datasheet PDF includes multiple part numbers: ERJS03, ERJU01.
Please refer to the document for exact specifications by model.

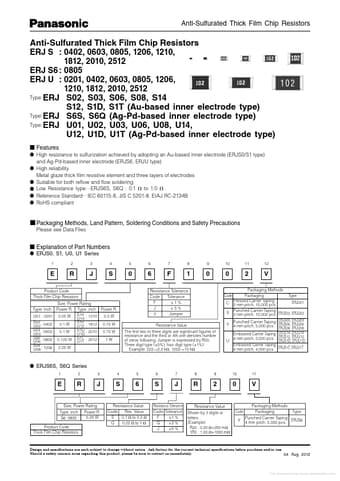

ERJS03, ERJU01, Anti-Sulfurated Thick Film Chip Resistors
Anti-Sulfurated Thick Film Chip Resistors Anti-Sulfurated Thick Film Chip Resistors ERJ S : 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 ERJ S6 : 0805 ERJ U : 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 Type: ERJ S02, S03, S06, S08, S14 S12, S1D, S1T (Au-based inner electrode type) Type: ERJ S6S, S6Q (Ag-Pd-based inner electrode type) Type: ERJ U01, U02, U03, U06, U08, U14, U12, U1D, U1T (Ag-Pd-based inner electrode type) High resistance to sulfurization achieved by adopting an
ERJS03 Features
* Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions Please see Data Files
* Explanation of Part Numbers
* ERJS0, S1, U0, U1 Series 1 2 3 4 5 6 7 8 9 10 11 12 & 3 + 4 ' 7 Product Code Thick Film Chip Resistors Type: inch U01 : 0201 S02 U02 :
