ERA8AHD - Metal Film (Thin Film) Chip Resistors

Product Overview

Panasonic

Part number	ERA8AHD
Manufacturer	Panasonic
File Size	105.94 KB
Description	Metal Film (Thin Film) Chip Resistors
Datasheet	ERA8AHD Datasheet
Note	This datasheet PDF includes multiple part numbers: ERA8AHD, ERA2A. Please refer to the document for exact specifications by model.

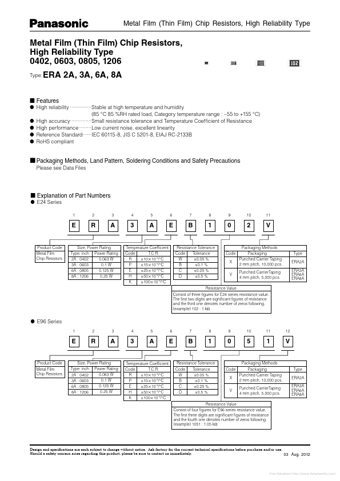

Additional preview pages of the ERA8AHD datasheet.

s.
High reliability Stable at high temperature and humidity (85 °C 85 %RH rated load, Category temperature range :.
55 to +155 °C).
High accuracy Small resistance tolerance and Temperature Coefﬁcient of Resistance.
High performance Low current noise, excellent linearity.
Reference Standard IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B.
RoHS compliant Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions Please see Data Files.
Explanati.
