ELLVFG330MC - Power Inductors / Wire Wound type

Download the ELLVFG330MC datasheet PDF. This datasheet also covers the ELLVEG variant, as both devices belong to the same power inductors / wire wound type family and are provided as variant models within a single manufacturer datasheet.

Features

  • s.
  • Magnetic shielded structure Low DC resistance and large current capability Shock resistant RoHS compliant.
  • Recommended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ELLVEG_Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ELL1 Double Output Pentode Philips
ELL1 Pentode ETC
ELL80 ELL80 ETC

Other Datasheets by Panasonic

Part Number Description
ELLVFG3R3NC Power Inductors / Wire Wound type
ELLVFG-C Power Inductors / Wire Wound type
ELLVFG100MC Power Inductors / Wire Wound type
ELLVFG150MC Power Inductors / Wire Wound type
ELLVFG1R0NC Power Inductors / Wire Wound type

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

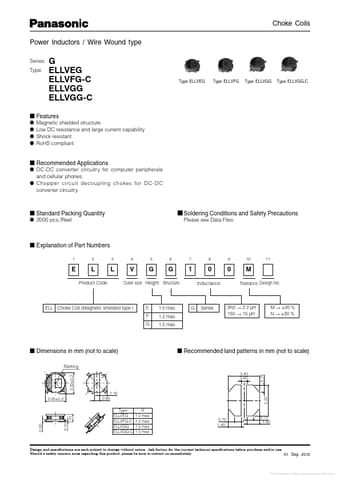

Choke Coils Power Inductors / Wire Wound type Series: Type: G ELLVEG ELLVFG-C ELLVGG ELLVGG-C Type ELLVEG Type ELLVFG Type ELLVGG Type ELLVGG-C ■ Features ● ● ● ● Magnetic shielded structure Low DC resistance and large current capability Shock resistant RoHS compliant ■ Recommended Applications ● DC-DC converter circuitry for computer peripherals and cellular phones. ● Chopper circuit decoupling chokes for DC- DC converter circuitry. ■ Standard Packing Quantity ● 2000 pcs./Reel Soldering Conditions and Safety Precautions Please see Data Files ■ Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 & Product Code - 7 ( (   Inductance  . Tolerance Design No. Outer size Height Structure ELL Choke Coil (Magnetic shielded type ) E F G 1.0 max. 1.2 max. 1.5 max.
