ELF24V018A - Line Filters

Download the ELF24V018A datasheet PDF. This datasheet also covers the ELF variant, as both devices belong to the same line filters family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ELF-24V008A.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ELF ELF Series PLUG AND HEADER SYSTEMS Amphenol
ELF-316GWB-04 Quadruple Digit Displays Everlight Electronics
ELF-316GWB-05 Quadruple Digit Displays Everlight Electronics
ELF-401EWA Quadruple Digit Displays Everlight Electronics
ELF-406GWB Quadruple Digit Displays Everlight Electronics

Other Datasheets by Panasonic

Part Number Description
ELF24V010A Line Filters
ELF24V012A Line Filters
ELF24V014A Line Filters
ELF24V015A Line Filters
ELF24V019A Line Filters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

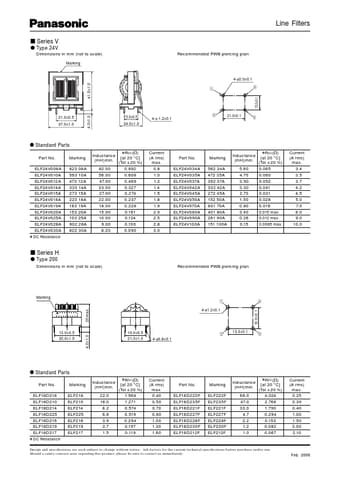

■ Series V ● Type 24V Dimensions in mm (not to scale) Marking Line Filters Recommended PWB piercing plan 4-f2.0±0.1 14 41.5±1.0 15.0±0.1 4.0±1.0 21.0±0.5 37.0±1.0 15.0±0.5 24.0±1.0 4-f 1.2±0.1 2 21.0±0.1 3 ● Standard Parts Part No. Marking ELF24V008A ELF24V010A ELF24V012A ELF24V014A ELF24V015A ELF24V018A ELF24V019A ELF24V020A ELF24V025A ELF24V028A ELF24V030A ✽ DC Resistance 823 08A 563 10A 473 12A 333 14A 273 15A 223 18A 183 19A 153 20A 103 25A 902 28A 822 30A Inductance (mH)min. ✽ RDC(ȑ) [at 20 °C] (Tol ±20 %) 82.00 0.892 56.00 0.608 47.00 0.469 33.00 0.327 27.00 0.274 22.00 0.237 18.00 0.228 15.00 0.161 10.00 0.124 9.00 0.100 8.20 0.090 Current (A rms) max. 0.8 1.0 1.2 1.4 1.5 1.8 1.9 2.0 2.5 2.8 3.0 Part No.
