EEVTG1A152UQ, EEVTG1A102Q - Aluminum Electrolytic Capacitors

Panasonic

Datasheet Details

Part number	EEVTG1A152UQ, EEVTG1A102Q
Manufacturer	Panasonic ↗
File Size	107.23 KB
Description	Aluminum Electrolytic Capacitors

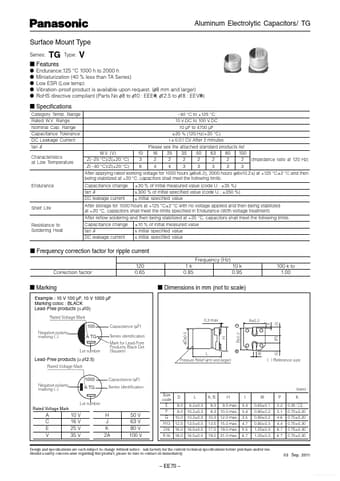

Datasheet	EEVTG1A102Q_Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: EEVTG1A152UQ, EEVTG1A102Q. Please refer to the document for exact specifications by model.

s Endurance:125 °C 1000 h to 2000 h Miniaturization (40 % less than TA Series) Low ESR (Low temp) Vibration-proof product is available upon request. (φ8 mm and larger) RoHS directive compliant (Parts No φ8 to φ10 : EEE✽, φ12.5 to φ18 : EEV✽).
Speciﬁcations Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ Characteristics at Low Temperature W. V. (V) Z(.
25 °C)/Z(+20 °C) Z(.
40 °C)/Z(+20 °C) 10 3 6.
40 °C to +125 °C.
