EEUFS1K101 - Aluminum Electrolytic Capacitors

Product Overview

Panasonic

Part number	EEUFS1K101
Manufacturer	Panasonic
File Size	124.22 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	EEUFS1K101 Datasheet
Note	This datasheet PDF includes multiple part numbers: EEUFS1K101, EEUFS0J221. Please refer to the document for exact specifications by model.

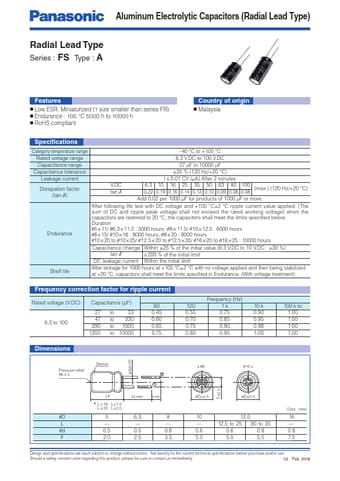

Additional preview pages of the EEUFS1K101 datasheet.

Low ESR, Miniaturized (1 size smaller than series FR).
Endurance : 105 °C 5000 h to 10000 h.
RoHS compliant Country of origin.
Malaysia Specifications Category temperature range.
40 °C to +105 °C Rated voltage range 6.3 V. DC to 100 V. DC Capacitance range 27 µF to 10000 µF Capacitance tolerance ±20 % (120 Hz/+20 °C) Leakage current I < 0.01 CV (µA) After 2 minutes Dissipation factor (tan d) V. DC tan d 6.3 0.22 10 0.19 16 0.16 25 0.14 35 0.12 50 0.1.
