EETHC1J272HJ - Aluminum Electrolytic Capacitors

Download the EETHC1J272HJ datasheet PDF. This datasheet also covers the EETHC1A123HJ variant, as both devices belong to the same aluminum electrolytic capacitors family and are provided as variant models within a single manufacturer datasheet.

Features

  • s.
  • Endurance : 105 °C 2000 h.
  • 30 % smaller than series TS-HB.
  • RoHS directive compliant.
  • Specifications Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan d.
  • 40 °C to +105 °C 10 V. DC to 100 V. DC 160 V. DC to 250 V. DC 820 μF to 100000 μF 150 μF to 3300 μF ±20 % (120 Hz/+20 °C).
  • 25 °C to +105 °C 315 V. DC to 450 V. DC 39 μF to 1000 μF 3√ CV (μA) max. After 5 minutes.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EETHC1A123HJ-Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
EETHC2C102BA Large Can Aluminum Electrolytic Capacitors Panasonic Semiconductor
EETHC2C102CA Large Can Aluminum Electrolytic Capacitors Panasonic Semiconductor
EETHC2C102DA Large Can Aluminum Electrolytic Capacitors Panasonic Semiconductor
EETHC2C122BA Large Can Aluminum Electrolytic Capacitors Panasonic Semiconductor
EETHC2C122CA Large Can Aluminum Electrolytic Capacitors Panasonic Semiconductor

Other Datasheets by Panasonic

Part Number Description
EETHC1J272JJ Aluminum Electrolytic Capacitors
EETHC1J222HJ Aluminum Electrolytic Capacitors
EETHC1J103KJ Aluminum Electrolytic Capacitors
EETHC1J103LJ Aluminum Electrolytic Capacitors
EETHC1J123LJ Aluminum Electrolytic Capacitors

Full PDF Text Transcription

Click to expand full text

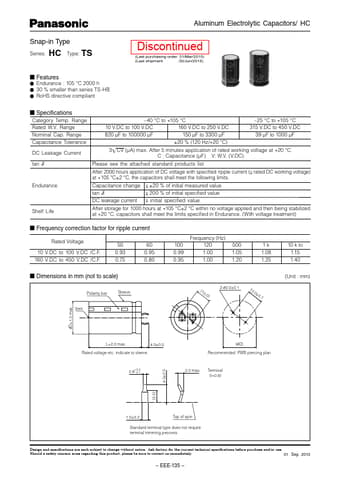

Aluminum Electrolytic Capacitors/ HC Snap-in Type Series: HC Type: TS Discontinued ■ Features ● Endurance : 105 °C 2000 h ● 30 % smaller than series TS-HB ● RoHS directive compliant ■ Specifications Category Temp. Range Rated W.V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan d –40 °C to +105 °C 10 V.DC to 100 V.DC 160 V.DC to 250 V.DC 820 μF to 100000 μF 150 μF to 3300 μF ±20 % (120 Hz/+20 °C) –25 °C to +105 °C 315 V.DC to 450 V.DC 39 μF to 1000 μF 3√ CV (μA) max. After 5 minutes application of rated working voltage at +20 °C. C : Capacitance (μF) V: W.V. (V.
