EEEHA1J220UP - Aluminum Electrolytic Capacitors

Download the EEEHA1J220UP datasheet PDF. This datasheet also covers the EEEHA0J220R variant, as both devices belong to the same aluminum electrolytic capacitors family and are provided as variant models within a single manufacturer datasheet.

Features

  • br>.
  • Specifications Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan d W. V. (V) Characteristics at Low Temperature Z(.
  • 25 °C)/Z(+20 °C) Z(.
  • 40 °C)/Z(+20 °C) 6.3 4 8 10 3 6.
  • 40 °C to +105 °C 6.3 V. DC to 100 V. DC 1 μF to 1500 μF ±20 % (120 Hz/+20 °C) I < 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater) Please see the attached standard products list 16 2 4 25 2 4 35 2 3 50 2 3 63 3 4 100 3 4 (Impedance ratio at 120 H.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EEEHA0J220R-Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Panasonic

Part Number Description
EEEHA1J220P Aluminum Electrolytic Capacitors
EEEHA1J100P Aluminum Electrolytic Capacitors
EEEHA1J330P Aluminum Electrolytic Capacitors
EEEHA1J470P Aluminum Electrolytic Capacitors
EEEHA1J470UP Aluminum Electrolytic Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

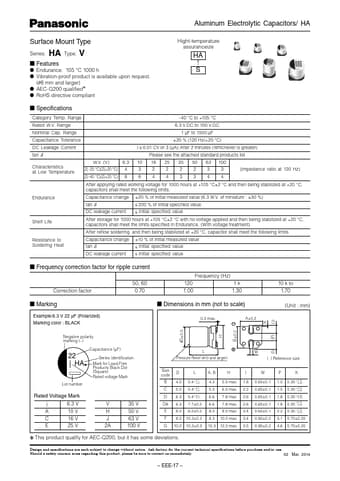

Aluminum Electrolytic Capacitors/ HA Surface Mount Type Series: Hight-temperature assuranceize HA Type: V HA ↑ ● Endurance: 105 °C 1000 h ● Vibration-proof product is available upon request. (08 mm and larger) ● AEC-Q200 qualified ✽ ● RoHS directive compliant ■ Features S ■ Specifications Category Temp. Range Rated W.V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan d W.V. (V) Characteristics at Low Temperature Z(–25 °C)/Z(+20 °C) Z(–40 °C)/Z(+20 °C) 6.3 4 8 10 3 6 –40 °C to +105 °C 6.3 V.DC to 100 V.DC 1 μF to 1500 μF ±20 % (120 Hz/+20 °C) I < 0.
