EEE0JA471P, EEE-1CA101WP - (EEExxxx) Aluminum Electrolytic Capacitors

Panasonic

📥 Download Datasheet

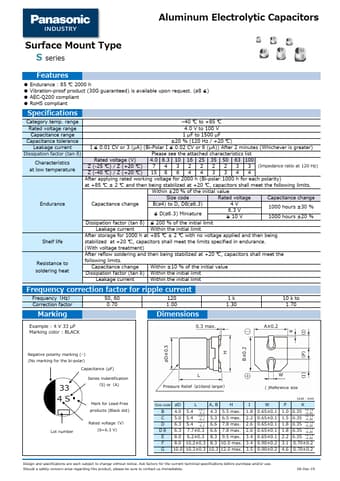

EEE0JA471P Datasheet Preview — This datasheet PDF includes multiple part numbers: EEE0JA471P, EEE-1CA101WP. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EEE0JA471P, EEE-1CA101WP
Manufacturer	Panasonic ↗
File Size	555.63 KB
Description	(EEExxxx) Aluminum Electrolytic Capacitors
Datasheet	EEE-1CA101WP_Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: EEE0JA471P, EEE-1CA101WP. Please refer to the document for exact specifications by model.

EEE0JA471P Product details

Features

Endurance : 85 ℃ 2000 h.
Vibration-proof product (30G guaranteed) is available upon request. (ø8 ≦).
AEC-Q200 compliant.
RoHS compliant Specifications Category temp. range.
40 ℃ to +85 ℃ Rated voltage range 4.0 V to 100 V Capacitance range 1 μF to 1500 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) Leakage current I ≦ 0.01 CV or 3 (μA) (Bi-Polar I ≦ 0.02 CV or 6 (μA)) After 2 minutes (Whichever is greater) Dissipation factor (tan δ) Please see the atta.
