ECHU1C822xX5 - Stacked Metallized PPS Film Chip Capacitor

Download the ECHU1C822xX5 datasheet PDF. This datasheet also covers the ECHU1C101xX5 variant, as both devices belong to the same stacked metallized pps film chip capacitor family and are provided as variant models within a single manufacturer datasheet.

Features

  • s.
  • Small in size (minimum size 1.6 mm ✕ 0.8 mm).
  • 85 ˚C, 85 %RH, W. V. ✕ 1.0 for 500 hours.
  • For reflow soldering.
  • RoHS directive compliant.
  • Recommended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ECHU1C101xX5_Panasonic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ECHU1C822xX5
Manufacturer Panasonic
File Size 412.17 KB
Description Stacked Metallized PPS Film Chip Capacitor
Datasheet download datasheet ECHU1C822xX5 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ECH06A20 SBD Nihon Inter Electronics
ECH06A20-F Schottky Barrier Diode Kyocera
ECH06A20-F SBD Nihon Inter Electronics
ECH11 Triode TELEFUNKEN
ECH11 Triode RFT

Other Datasheets by Panasonic

Part Number Description
ECHU1C821xX5 Stacked Metallized PPS Film Chip Capacitor
ECHU1C823xX5 Stacked Metallized PPS Film Chip Capacitor
ECHU1C101xX5 Stacked Metallized PPS Film Chip Capacitor
ECHU1C102xX5 Stacked Metallized PPS Film Chip Capacitor
ECHU1C103xX5 Stacked Metallized PPS Film Chip Capacitor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

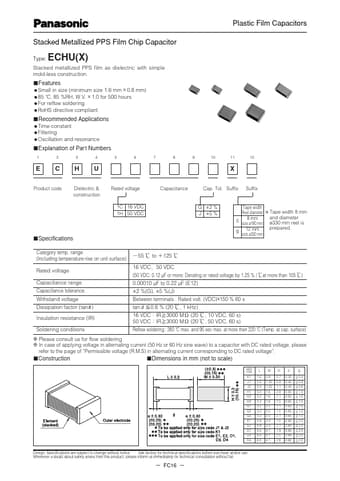

Plastic Film Capacitors Stacked Metallized PPS Film Chip Capacitor Type: ECHU(X) Stacked metallized PPS film as dielectric with simple mold-less construction ■ Features • Small in size (minimum size 1.6 mm ✕ 0.8 mm) • 85 ˚C, 85 %RH, W.V. ✕ 1.0 for 500 hours • For reflow soldering • RoHS directive compliant ■ Recommended Applications • Time-constant • Filtering • Oscillation and resonance ■ Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 E C H U Rated voltage Capacitance X Cap. Tol. Suffix Suffix Product code Dielectric & construction 1C 16 VDC 1H 50 VDC G ±2 % J ±5 % ■ Specifications Category temp.
