ECEA1VN221U - Aluminum Electrolytic Capacitors

Product Overview

Panasonic

Part number	ECEA1VN221U
Manufacturer	Panasonic
File Size	63.34 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	ECEA1VN221U Datasheet
Note	This datasheet PDF includes multiple part numbers: ECEA1VN221U, ECEA0JN331U. Please refer to the document for exact specifications by model.

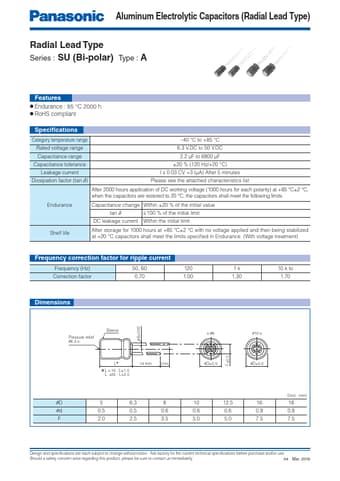

Additional preview pages of the ECEA1VN221U datasheet.

Endurance : 85 °C 2000 h.
RoHS compliant Specifications Category temperature range Rated voltage range.
40 °C to +85 °C 6.3 V. DC to 50 V. DC Capacitance range 2.2 µF to 6800 µF Capacitance tolerance Leakage current ±20 % (120 Hz/+20 °C) I < 0.03 CV +3 (µA) After 5 minutes Dissipation factor (tan d) Please see the attached characteristics list After 2000 hours.
