ECA2VHG101 - Aluminum Electrolytic Capacitors

Download the ECA2VHG101 datasheet PDF. This datasheet also covers the ECA0JHG221 variant, as both devices belong to the same aluminum electrolytic capacitors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • s.
  • Endurance : 105 °C 1000 h to 2000 h.
  • RoHS directive compliant.
  • Specifications Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ.
  • 55 °C to +105 °C 6.3 V. DC to 100 V. DC 0.1 µF to 22000 µF ±20 % (120 Hz/+20 °C) I < 0.01 CV or 3 (µA) After 2 minutes (Which is greater) I < 0.06 CV +10 (µA) After 2 minutes.
  • 25 °C to +105 °C 160 V. DC to 450 V. DC 1.0 µF to 330 µF Please see the attached standard products list After.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ECA0JHG221_Panasonic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ECA2VHG101
Manufacturer Panasonic
File Size 84.95 KB
Description Aluminum Electrolytic Capacitors
Datasheet download datasheet ECA2VHG101 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ECA25 (ECA Series) Coaxil Fixed Attenustor EPX
ECASD60D337M007K00 Capacitor muRata
ECASD60J337M009KA0 Capacitor muRata

Other Datasheets by Panasonic

Part Number Description
ECA2VHG100 Aluminum Electrolytic Capacitors
ECA2VHG010 Aluminum Electrolytic Capacitors
ECA2VHG220 Aluminum Electrolytic Capacitors
ECA2VHG2R2 Aluminum Electrolytic Capacitors
ECA2VHG330 Aluminum Electrolytic Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

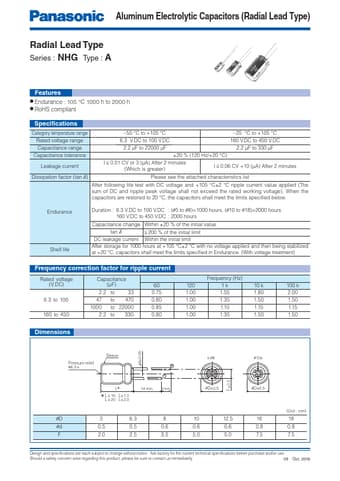

Aluminum Electrolytic Capacitors/ NHG Radial Lead Type Series: NHG Type: A ■ Features ● Endurance : 105 °C 1000 h to 2000 h ● RoHS directive compliant ■ Specifications Category Temp. Range Rated W.V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ –55 °C to +105 °C 6.3 V.DC to 100 V.DC 0.1 µF to 22000 µF ±20 % (120 Hz/+20 °C) I < 0.01 CV or 3 (µA) After 2 minutes (Which is greater) I < 0.06 CV +10 (µA) After 2 minutes –25 °C to +105 °C 160 V.DC to 450 V.DC 1.
