DSP1A-L-DC5V-Y1 - small polarized power relays

Product Overview

Panasonic

Part number	DSP1A-L-DC5V-Y1
Manufacturer	Panasonic
File Size	113.99 KB
Description	small polarized power relays
Datasheet	DSP1A-L-DC5V-Y1 Datasheet
Note	This datasheet PDF includes multiple part numbers: DSP1A-L-DC5V-Y1, DSP1A-DC12V. Please refer to the document for exact specifications by model.

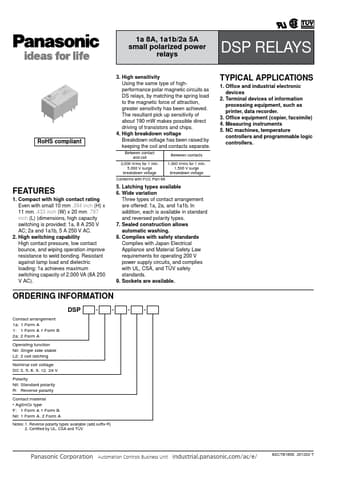

Additional preview pages of the DSP1A-L-DC5V-Y1 datasheet.

1. Compact with high contact rating Even with small 10 mm .394 inch (H) x 11 mm .433 inch (W) x 20 mm .787 inch (L) (dimensions, high capacity switching is provided: 1a, 8 A 250 V AC; 2a and 1a1b, 5 A 250 V AC. 2. High switching capability High contact pressure, low contact bounce, and wiping operation improve resistance to weld bonding. Resistant against lamp load and dielectric loading: 1a achieves maximum switching capacity of 2,000 VA (8A 250 V AC). 3. High sensitivity Using the same type o.
