Part number	DN6847
Manufacturer	Panasonic
File Size	41.66 KB
Description	Hall IC
Datasheet	DN6847 Datasheet

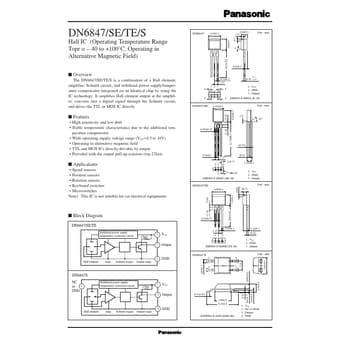

Additional preview pages of the DN6847 datasheet.

Product details

Features

High sensitivity and low drift.
Stable temperature characteristics due to the additional tem.
perature compensator Wide operating supply voltage range (VCC=4.5 to 16V) Operating in alternative magnetic field TTL and MOS ICs directly drivable by output Provided with the output pull-up resistors (typ 27kΩ) 0.55±0.15 45˚ (1.0) 12.5±06.5 (0.72) 0.4±0.1 1.27 2 to 5˚ 1 2 3 2˚ R0.25 (0.4) 1.54±0.1 1 : VCC 2 : GND 3 : Output Unit : mm s Ap.
