DB2X20700L - Schottky Barrier Diode

Features

  • s.
  • Low forward voltage VF.
  • Forward current (Average) IF(AV) = 1 A rectification is possible.
  • Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL:Level 1 compliant) Unit: mm 1.6 2 0.13.
  • Marking Symbol: AA.
  • Packaging Embossed type (Thermo-compression sealing) : 3 000 pcs / reel (standard) 1 0.55 1. Cathode 2. Anode Panasonic JEITA Code 2.6 3.5 0.8.
  • Absolute Maximum Ratings Ta = 25 C Parameter Symbol Reverse voltage Repetitive peak reverse voltage Forward.

📥 Download Datasheet

📁 Similar Datasheet

  • DB201 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (GW)
  • DB201 - BRIDGERECTIFIER (MIC)
  • DB201 - (DB201 - DB207) Silicon Bridge Rectifiers (Galaxy Semiconductor)
  • DB201 - (DB201 - DB203) Silicon Bridge Rectifiers (Luguang Electronic)
  • DB201 - Silicon Bridge Rectifiers (SEMTECH)
  • DB201 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (Rectron)
  • DB201 - 2.0 Amp Single Phase Bridge Rectifier (MCC)
  • DB201S - SURFACE MOUNT BRIDGE RECTIFIER (Sunmate)
  • DB201S - Silicon Bridge Rectifiers (Galaxy Semiconductor)
  • DB201S - SILICON BRIDGE RECTIFIERS (GME)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text

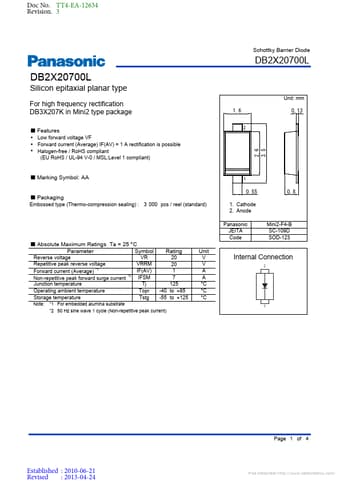

Doc No. TT4-EA-12634 Revision. 3 Product Standards Schottky Barrier Diode DB2X20700L DB2X20700L Silicon epitaxial planar type For high frequency rectification DB3X207K in Mini2 type package  Features  Low forward voltage VF  Forward current (Average) IF(AV) = 1 A rectification is possible  Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL:Level 1 compliant) Unit: mm 1.6 2 0.13  Marking Symbol: AA  Packaging Embossed type (Thermo-compression sealing) : 3 000 pcs / reel (standard) 1 0.55 1. Cathode 2. Anode Panasonic JEITA Code 2.6 3.5 0.
