DB2J313 - Silicon epitaxial planar type

Panasonic

📥 Download Datasheet

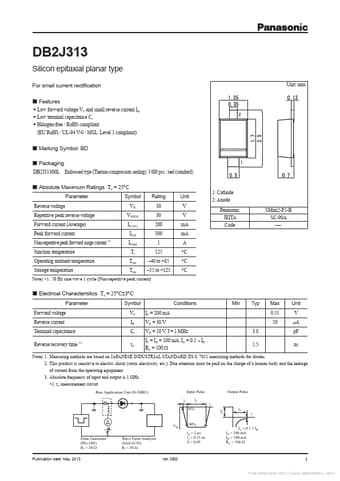

DB2J313 Datasheet Preview — Preview of DB2J313 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DB2J313
Manufacturer	Panasonic
File Size	357.36 KB
Description	Silicon epitaxial planar type
Datasheet	DB2J313_Panasonic.pdf

DB2J313 Product details

Features

Low forward voltage VF and small reverse current IR.
Low terminal capacitance Ct.
Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL: Level 1 compliant) Unit: mm.
Marking Symbol: BD.
Packaging DB2J31300L Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard).
Absolute Maximum Ratings Ta = 25°C Parameter Reverse voltage Repetitive peak reverse voltage Forward current (Average) Peak forward current Non-repetitive peak forward sur.
