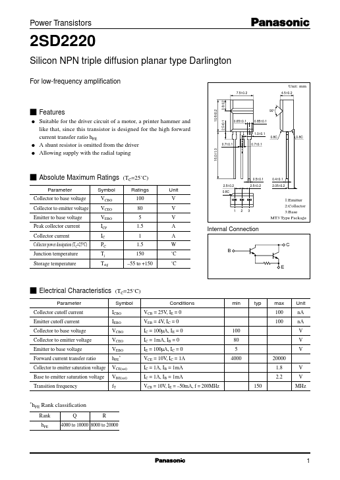

Power Transistors 2SD2220 Silicon NPN triple diffusion planar type Darlington For low-frequency amplification s .

D2220 Features

* q Suitable for the driver circuit of a motor, a printer hammer and like that, since this transistor is designed for the high forward current transfer ratio hFE q A shunt resistor is omitted from the driver q Allowing supply with the radial taping 10.8±0.2 7.5±0.2 Unit: mm 4.5±0.2 3.8±0.2 90° 0.
