C2647 Silicon NPN Transistor

C2647 Description

Transistors 2SC2647 Silicon NPN epitaxial planar type For high-frequency amplification Unit: mm * .

C2647 Features

* Optimum for RF amplification, oscillation, mixing, and IF of (0.4) 6.9±0.1 (1.5) (1.5) 2.5±0.1 (1.0) (1.0) 4.5±0.1 3.5±0.1 FM/AM radios R 0.9
* M type package allowing easy automatic and manual insertion R 0.7 as well as stand-alone fixing to the printed circuit board 4

📥 Download Datasheet

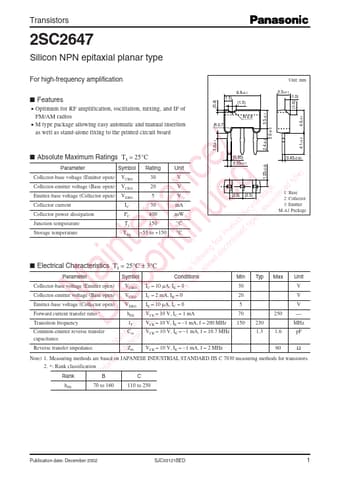

Preview of C2647 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C2647
Manufacturer
Panasonic
File Size
261.02 KB
Datasheet
C2647-Panasonic.pdf
Description
Silicon NPN Transistor
