AQV221 - PhotoMOS RELAY / Radio frequent switching

Panasonic

📥 Download Datasheet

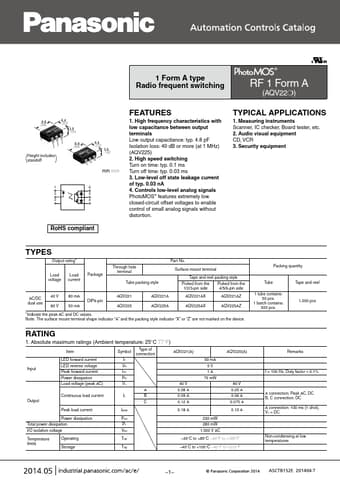

AQV221 Datasheet Preview — Preview of AQV221 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AQV221
Manufacturer: Panasonic
File Size: 103.51 KB
Datasheet: AQV221-Panasonic.pdf
Description: PhotoMOS RELAY / Radio frequent switching

AQV221 Product details

Features

1. High frequency characteristics with low capacitance between output terminals Low output capacitance: typ. 4.8 pF Isolation loss: 40 dB or more (at 1 MHz) (AQV225) 2. High speed switching Turn on time: typ. 0.1 ms Turn off time: typ. 0.03 ms 3. Low-level off state leakage current of typ. 0.03 nA 4. Controls low-level analog signals PhotoMOS® features extremely low closed-circuit offset voltages to enable control of small analog signals without distortion. RoHS compliant.
