AHF22, AHF2 - HIGHLY RELIABLE TIP SENSOR CONTAINING A PHOTO SENSOR

Name: AHF22
SKU: AHF22-912864

Panasonic

The AHF22 by Panasonic is a HIGHLY RELIABLE TIP SENSOR CONTAINING A PHOTO SENSOR. Below is the official datasheet preview.

Datasheet Details

Part number	AHF22, AHF2
Manufacturer	Panasonic
File Size	80.40 KB
Description	HIGHLY RELIABLE TIP SENSOR CONTAINING A PHOTO SENSOR
Datasheet	AHF2-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: AHF22, AHF2. Please refer to the document for exact specifications by model.

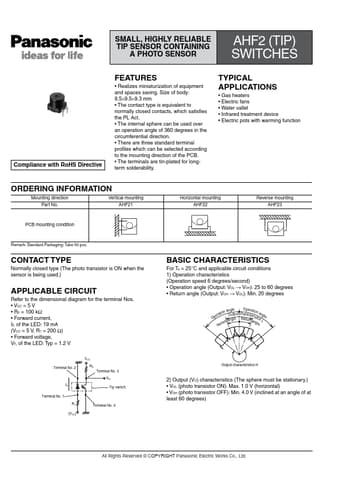

Additional preview pages of the AHF22 datasheet.

Realizes miniaturization of equipment and spaces saving. Size of body: 9.5×9.5×9.3 mm.
The contact type is equivalent to normally closed contacts, which satisﬁes the PL Act.
The internal sphere can be used over an operation angle of 360 degrees in the circumferential direction.
There are three standard terminal proﬁles which can be selected according to the mounting direction of the PCB.
The terminals are tin-plated for longterm solderability. TY.
