ADE329 - DE RELAYS

Download the ADE329 datasheet PDF. This datasheet also covers the ADE109 variant, as both devices belong to the same de relays family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1. Conforms to European safety standard (VDE0700 and VDE0631). Insulating distance between coil and contacts: Clearance Min. 8mm .315 inch Creepage Min. 8mm .315 inch 2. Low operating power Nominal operating power at 200 mW (Single side stable, 2 coil latching) 3. Compact body saves space Size: 12.5(W) × 25(L) × 12.5(H) mm .492(W) × .984(L) × .492(H) inch 4. Conforms to the various safety standards UL, CSA and VDE approved RoHS compliant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ADE109-Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ADE3200 LCD Display Engines with Integrated DVI/ ADC and YUV Ports STMicroelectronics
ADE3250 LCD Display Engines with Integrated DVI/ ADC and YUV Ports STMicroelectronics
ADE3000 LCD Display Engines with Integrated DVI/ ADC and YUV Ports STMicroelectronics
ADE3050 LCD Display Engines with Integrated DVI/ ADC and YUV Ports STMicroelectronics
ADE3100 LCD Display Engines with Integrated DVI/ ADC and YUV Ports STMicroelectronics

Other Datasheets by Panasonic

Part Number Description
ADE323 DE RELAYS
ADE324 DE RELAYS
ADE303 DE RELAYS
ADE304 DE RELAYS
ADE309 DE RELAYS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

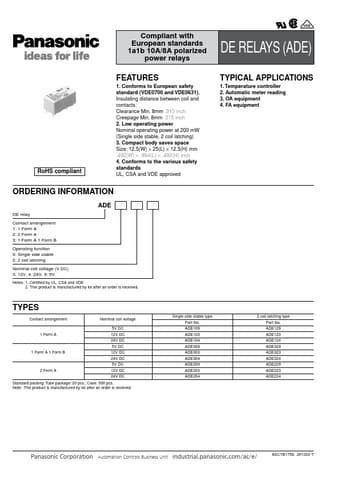

DE (ADE) Compliant with European standards 1a1b 10A/8A polarized power relays VDE DE RELAYS (ADE) TYPICAL APPLICATIONS 1. Temperature controller 2. Automatic meter reading 3. OA equipment 4. FA equipment FEATURES 1. Conforms to European safety standard (VDE0700 and VDE0631). Insulating distance between coil and contacts: Clearance Min. 8mm .315 inch Creepage Min. 8mm .315 inch 2. Low operating power Nominal operating power at 200 mW (Single side stable, 2 coil latching) 3. Compact body saves space Size: 12.5(W) × 25(L) × 12.5(H) mm .492(W) × .984(L) × .492(H) inch 4.
