ACJ1212P, ACJ1112 - SUPER MINIATURE PC BOARD TYPE AUTOMOTIVE RELAY

Name: ACJ1212P
SKU: ACJ1212P-692503

Panasonic

The ACJ1212P by Panasonic is a SUPER MINIATURE PC BOARD TYPE AUTOMOTIVE RELAY. Below is the official datasheet preview.

Datasheet Details

Part number	ACJ1212P, ACJ1112
Manufacturer	Panasonic
File Size	201.02 KB
Description	SUPER MINIATURE PC BOARD TYPE AUTOMOTIVE RELAY
Datasheet	ACJ1112_Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: ACJ1212P, ACJ1112. Please refer to the document for exact specifications by model.

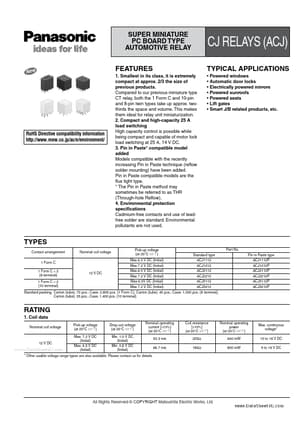

Additional preview pages of the ACJ1212P datasheet.

1. Smallest in its class, it is extremely compact at approx. 2/3 the size of previous products. Compared to our previous miniature type CT relay, both the 1 Form C and 10-pin and 8-pin twin types take up approx. twothirds the space and volume. This makes them ideal for relay unit miniaturization. 2. Compact and high-capacity 25 A load switching High capacity control is possible while being compact and capable of motor lock load switching at 25 A, 14 V DC. 3. Pin in Paste.
compatible model ad.
