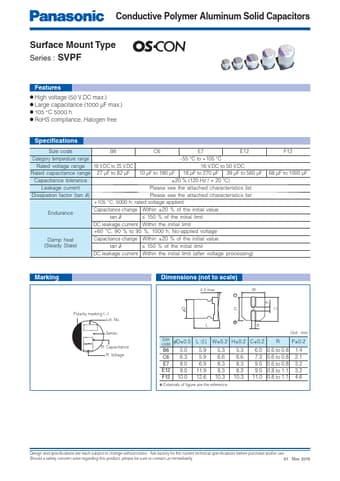

35SVPF22M, SVP - Conductive Polymer Aluminum Solid Capacitors

Panasonic

Datasheet Details

Part number	35SVPF22M, SVP
Manufacturer	Panasonic
File Size	51.70 KB
Description	Conductive Polymer Aluminum Solid Capacitors
Datasheet	SVP-F.pdf
Note	This datasheet PDF includes multiple part numbers: 35SVPF22M, SVP. Please refer to the document for exact specifications by model.

High voltage (50 V. DC max. ).
Large capacitance (1000 μF max. ).
105 °C 5000 h.
RoHS compliance, Halogen free Specifications Size code B6 C6 E7 E12 Category temperature range.
55 °C to +105 °C Rated voltage range 16 V. DC to 25 V. DC 16 V. DC to 50 V. DC Rated capacitance range 27 μF to 82 μF 10 μF to 180 μF 18 μF to 270 μF 39 μF to 560 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation fac.
