2SEPC2700M, 2SEPC100MZ - Conductive Polymer Aluminum Solid Capacitors

Name: 2SEPC2700M
SKU: 2SEPC2700M-1148136

Panasonic

The 2SEPC2700M by Panasonic is a Conductive Polymer Aluminum Solid Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	2SEPC2700M, 2SEPC100MZ
Manufacturer	Panasonic
File Size	52.42 KB
Description	Conductive Polymer Aluminum Solid Capacitors
Datasheet	2SEPC100MZ-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: 2SEPC2700M, 2SEPC100MZ. Please refer to the document for exact specifications by model.

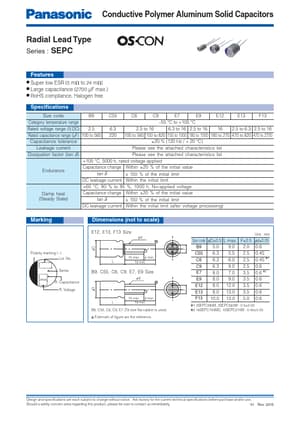

Additional preview pages of the 2SEPC2700M datasheet.

Super low ESR (5 mΩ to 24 mΩ).
Large capacitance (2700 μF max. ).
RoHS compliance, Halogen free Specifications Size code B9 C55 C6 C9 E7 E9 E12 E13 F13 Category temperature range.
55 °C to +105 °C Rated voltage range (V. DC) 2.5 6.3 2.5 to 16 6.3 to 16 2.5 to 16 16 2.5 to 6.3 2.5 to 16 Rated capacitance range (μF) 100 to 560 220 100 to 560 100 to 820 150 to 1000 180 to 1000 180 to 270 470 to 820 470 to 2700 Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage.
